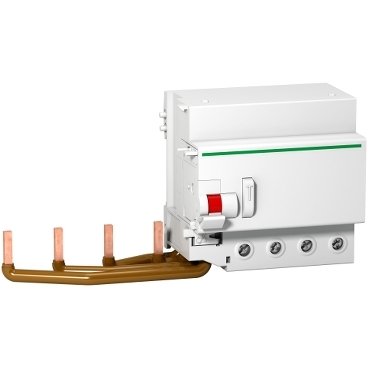

Acti 9 Vigi xC60 and Vigi C120 add on RCD modules for MCBs (RCBO) up to 125A
Features
- Nominal current: up to 125A
- 30mA sensitivity: additional protection against direct contact (in accordance with IEC 364)
- 100 & 300mA sensitivities: additional protection against fire and indirect contact (in accordance with IEC 364)
- Class AC - for normal installation
- Conforms to IEC/EN 61009-1
- CE marked
- Suitable for additional Protection and Indication auxiliaries: ON/OFF, Trip, Shunt trip, Undervoltage trip, Overvoltage trip, Communication Auxiliary
Benefits
- Total flexibility to select MCB as per load requirement to ensure best possible over current protection
- Easy monitoring: Earth fault indication on front face
- Immunity against nuisance tripping
- New SI RCDs offers enhanced immunity to electrical disturbances and polluted & corrosive environments
- 100% recyclable & recoverable materials
Applications
- Combined with MCB, the Vigi xC60 provide: Protection against earth leakage, short circuit and Overload faults
- Protection in all industrial and commercial buildings against:
- Electrocution (in accordance with installation standard IEC 60364 and national standards)
- The risk of fire due to current leakage into building electrical installations.
