Multi 9 Modular Devices

All electrical equipment needs acute observation and optimal protection to ensure that there are no threats of hazardous situations like explosion or...
Read More Read More

C60 UL/CSA MCBs

Wide range of Miniature Circuit Breakers for Original Equipment Manufacturers (OEMs) and control panel builders

Multi9 has been designed to offer enhanced protection by preventing and protecting people and equipment from electrical threats such as short circuits, earth leakages, overloads and more
Read More Read More

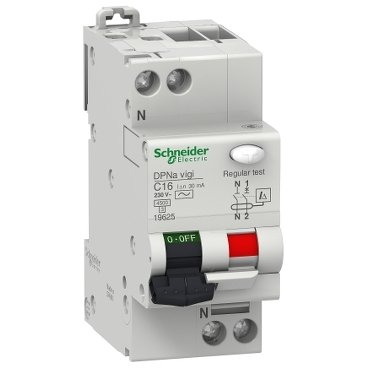

DPN N Vigi RCBO

Act 9 DPN N Vigi RCCB with Over Current Protection (RCBO) up to 40A

Act 9 DPN N Vigi RCCB with Over Current Protection (RCBO) up to 40A


Features

  • Nominal current: 6A to 40A
  • Tripping Curve: C
  • 30mA sensitivity: additional protection against direct contact (in accordance with IEC 364)
  • 300mA sensitivities: additional protection against fire and indirect contact (in accordance with IEC 364)
  • Class AC - for normal installation
  • Class Si (New) - for electrically disturbed networks (with harmonics, pulsating DC components etc.) & for harsh environments (presence of corrosive atmosphere, chemical gases, humid location  etc)
  • Conforms to IEC/EN 61009-1
  • CE marked
  • Suitable for additional Protection and Indication auxiliaries: ON/OFF, Trip, Shunt trip, Undervoltage trip, Overvoltage trip, Communication Auxiliary

Benefits

  • Compact 2poles 2module version
  • Easy monitoring: Earth fault indication on front face
  • Immunity against nuisance tripping
  • New SI RCDs offers enhanced immunity to electrical disturbances and polluted & corrosive environments
  • Ensures no accidental contact with live part – Finger-proof IP-20 terminals
  • Avoids false insertion of cables and loose termination with Pull up terminals
  • 100% recyclable & recoverable materials.

Applications

  • Protection in all industrial and commercial buildings against:
    • Electrocution (in accordance with installation standard IEC 60364 and national standards)
    • The risk of fire due to current leakage into building electrical installations.
  • Protection of wires and cables against Overload and Short Circuit current fault
