Control Cable

JZ-500

• Uo / U 300 / 500V
• Min. 20 GΩ x cm
• Flexing -5°C to +70°C. Fixed installation -30°C to +70°C

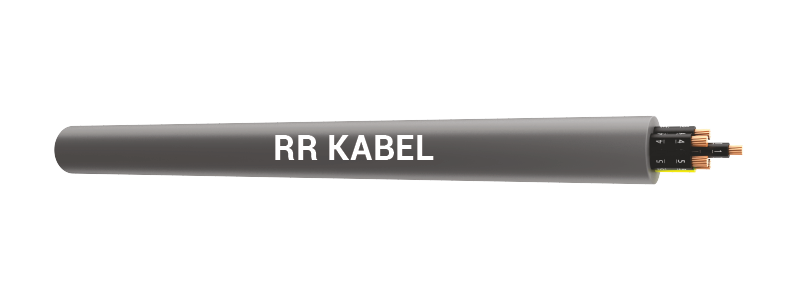

Control Cable (IS 694)

• IS 694 marked, FIA/TAC
• Electrolytic grade annealed copper Class-5 as per IS 8130, having uniform resistance properties
• All black colour cores with continous white numbering, gn-yl core on outer most layer for earth if applicable

JZ-CY

• Uo / U 300 / 500V
• Min. 20 GΩ x cm
• Flexing -5°C to +70°C. Fixed installation -30°C to +70°C

JZ-YCY

• Uo /U 300 / 500V
• Min. 20 GΩ x cm
• Flexing -5°C to +70°C. Fixed installation -30°C to +70°C

JZ-YSY

• Uo / U 300 / 500V
• Min. 20 GΩ x cm
• Flexing -5°C to +70°C. Fixed installation -30°C to +70°C

JB-YCY

• Uo / U 300 / 500V up to 1.5 mm². Uo / U 450 / 750V for 2.5 mm² and above
• Min. 20 GΩ x cm
• Flexing -5°C to +70°C. Fixed installation -30°C to +70°C

JB-YSY

• Uo / U 300 / 500V up to 1.5 mm². Uo/U 450/750V for 2.5 mm² and above
• Min. 20 GΩ x cm
• Flexing -5°C to +70°C; Fixed installation -30°C to +70°C

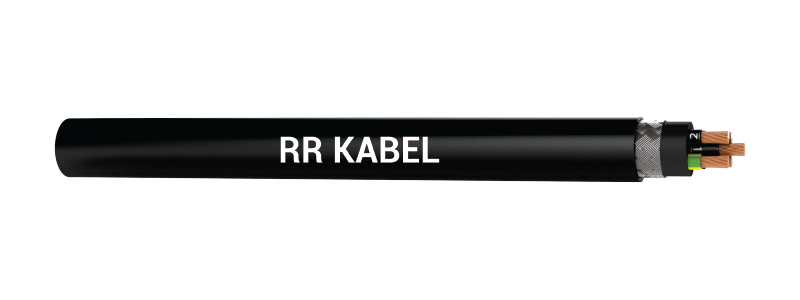

JZ-YCY BK 0.6/1.0 KV

• Uo / U 0.6 / 1 kV
• Min. 20 GΩ x cm
• Flexing -5°C to +70°C. Fixed installation -30°C to +70°C

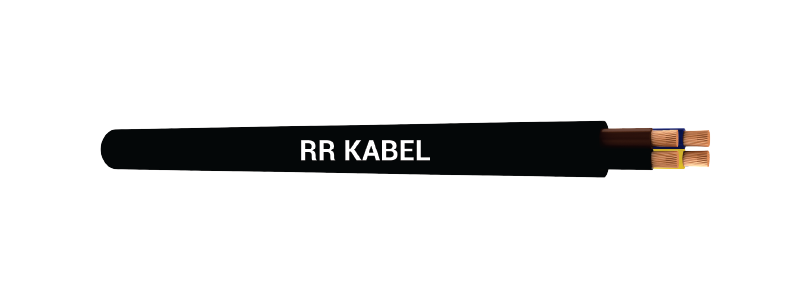

JB-BLACK 0.6/1 KV

• Uo / U 0.6 / 1 kV
• Min. 20 GΩ x cm
• Occasional flexing -5°C to +70°C. Fixed installation -30°C to +70°C

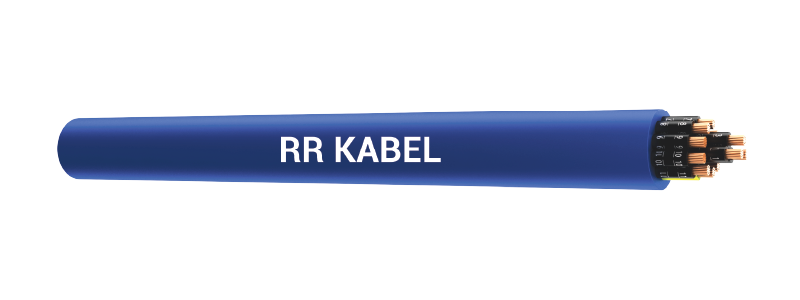

OZ-EB

• UO / U 300 / 500V
• Min. 20 GΩ x cm
• Flexing -5°C to +70°C. Fixed installation -30°C to +70°C

OZ-EB CY

• UO / U 300 / 500V.
• Min. 20 GΩ x cm
• Flexing -5°C to +70°C. Fixed installation -30°C to +70°C

JB-H

• UO / U 450 / 750V
• Flexing -15°C to +70°C. Fixed installation -30°C to +70°C
• Flexing approx. 15 x cable ø. Fixed installation approx. 4 x cable ø

JZ-H

• UO / U 300 / 500V
• Flexing -15°C to +70°C. Fixed installation -30°C to +70°C
• Flexing approx. 10 x cable ø. Fixed installation approx. 4 x cable ø

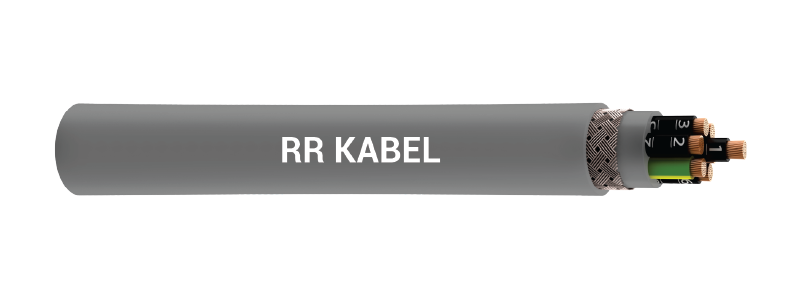

JZ-HCH

• Uo / U 300 / 500V
• Flexing -15°C to +70°C. Fixed installation -30°C to +70°C
• Flexing approx. 15 x cable ø. Fixed installation approx. 6 x cable ø

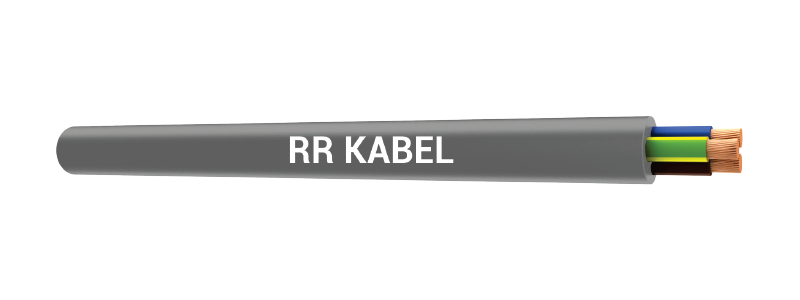

H03/H05VVH2-F & H03/H05VV-F

• Min. 20 GΩ x cm
• Flexing -5°C to +70°C.
• -30°C to +70°C

JB-750

• Uo/U 450/750V
• Min. 20 GΩ x cm
• Flexing -5°C to +70°C

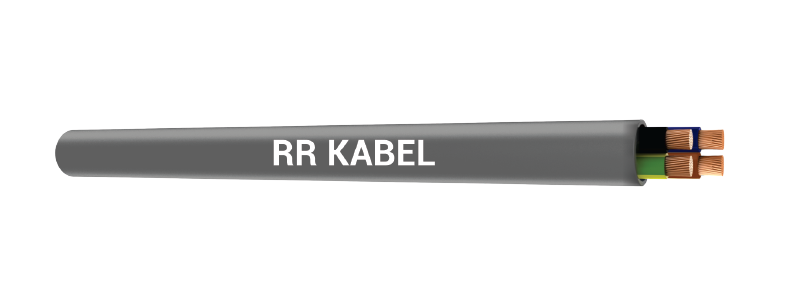

H03/H05V2V2H2-F & H03/H05V2V2-F

H05Z1Z1-F (318B)

• Flexing -5°C to +70°C.
• -30°C to +70°C
• Flexing 7.5 x cable ø; Fixed installation 4 x cable ø

JZ-YCY BK 0.6/1.0 KV

• UO / U 0.6 / 1kV
• Min. 20 GΩ x cm
• Flexing -5°C to +70°C. Fixed installation -30°C to +70°C

UL 2464

• UL- Std. 758. Special PVC command cable, approved to UL-Style 2464, cores according to AWG 24-16 to UL-Style 1007/1569
• 300V
• 1500V

UL 2576, 2598

• UL – Std. 758; UL – Style 2576, 2598
• 300V
• -20°C to + 80°C
